14.13.3 TDengine All-in-One Docker Deployment
This guide explains how to deploy TDengine All-in-One using Docker.
Watch TDengine Tutorial Videos: Docker Deployment Video
Docker deployment supports Linux, Windows, and macOS. macOS supports Docker deployment only.
14.13.3.1 Environment Requirements
Before deployment, ensure that the platform meets the following requirements.
| Platform | Requirement |
|---|---|
| Linux | Docker Engine 20.10 or later |
| Windows | Docker Engine or Docker Desktop |
| macOS | Docker Desktop |
The host also requires stable internet access. Windows requires administrator privileges, and Linux requires root privileges.
Recommended configuration:
| Resource | Recommended |
|---|---|
| CPU | 12 cores |
| Memory | 16 GB RAM |
| Storage | 100 GB available disk space |
14.13.3.2 Prepare Docker
Confirm that Docker is installed and running.
Check the Docker version:
docker version
Check the Docker service:
docker info
14.13.3.3 Run the Docker Deployment
Linux
Run the following command as root:
curl -fsSL https://downloads.taosdata.com/apex/install.sh | bash -s -- -m docker
macOS
Open a terminal and run:
curl -fsSL https://downloads.taosdata.com/apex/install.sh | bash -s -- -m docker
Docker Desktop must be running before you start deployment.
Windows
Open PowerShell as Administrator and run:
iwr https://downloads.taosdata.com/apex/install.ps1 -UseBasicParsing -OutFile $env:TEMP\apex-install.ps1; & $env:TEMP\apex-install.ps1 -Mode docker
When the deployment prompt appears, press Enter to continue the installation.
14.13.3.4 Troubleshooting
If deployment is not successful, verify the following:
- Docker is installed and running.
- The host has internet access to download installation packages.
- Required ports are available and not blocked by the firewall.
Note: If you encounter an issue related to the log files, stop the IDMP container and delete the log files from the mounted log volume, or delete them from inside the container if the logs are not persisted. Example (inside the container):
rm -rf /var/log/taos
Then rerun the deployment command above.

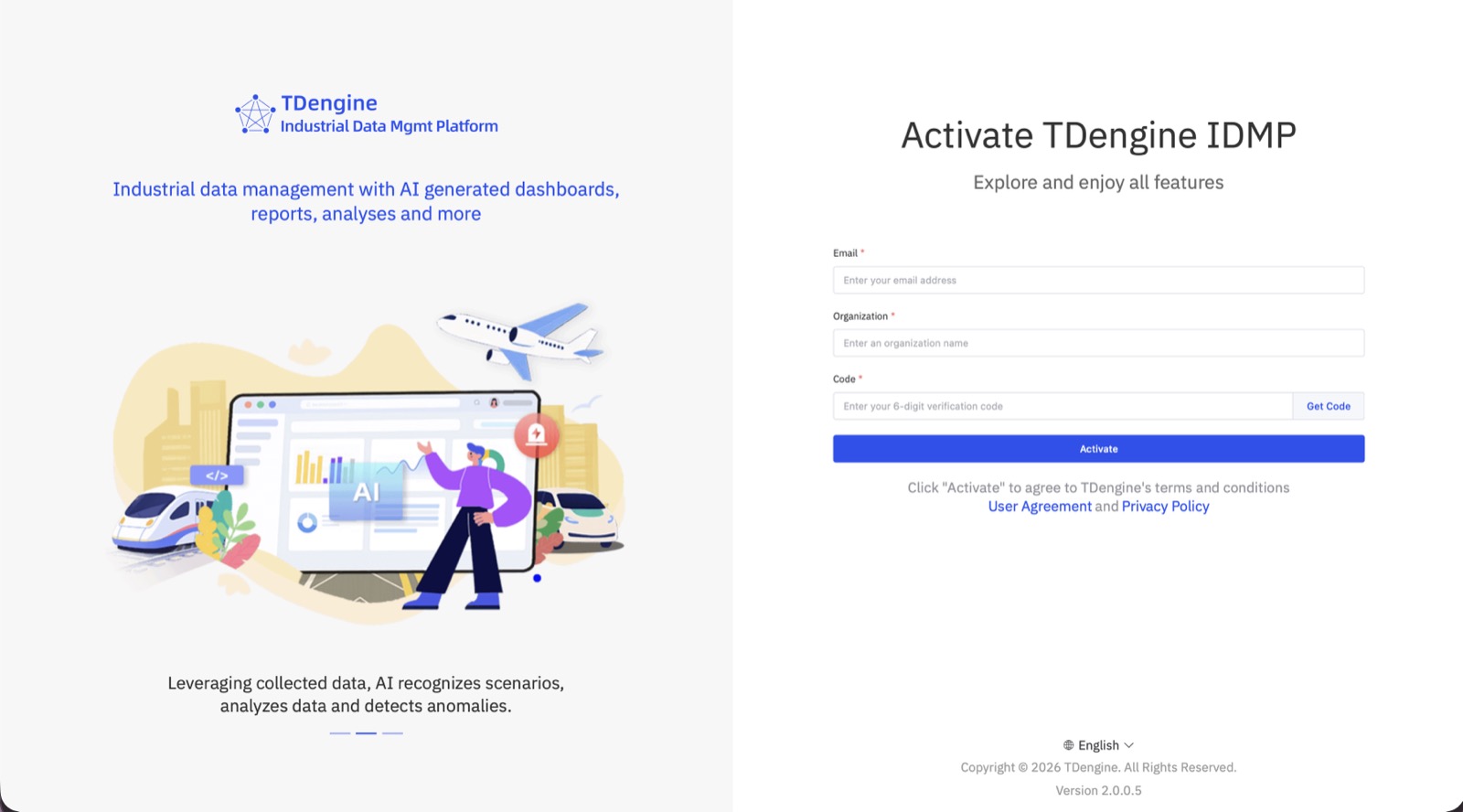

14.13.3.5 Access and Activate IDMP
After deployment completes successfully, open IDMP in a browser:
http://localhost:6042
If you access the service from another machine, replace localhost with the host name or IP address of the server where TDengine is installed.
Enter your email address, organization name, and verification code to activate IDMP.

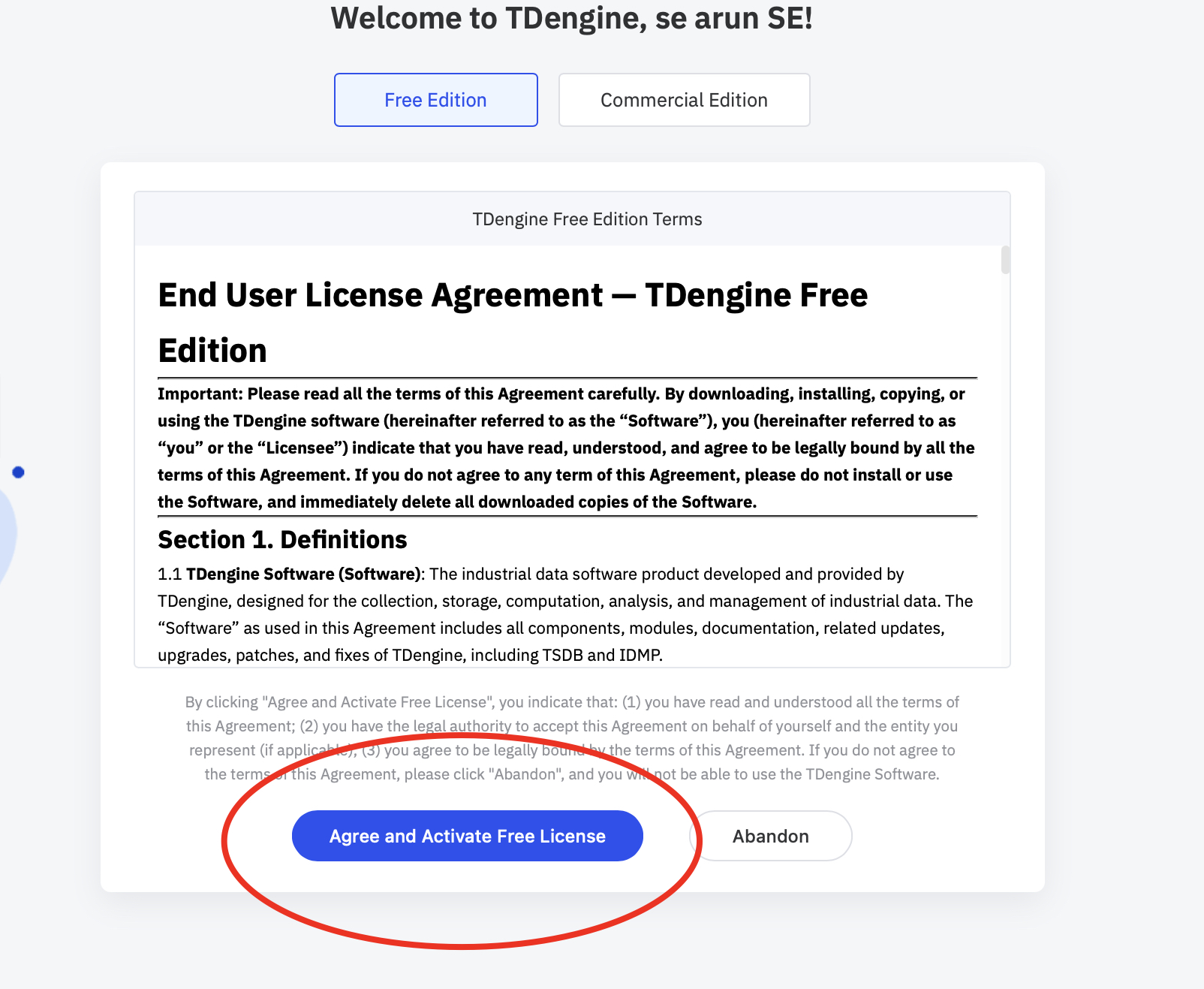

For the Free Edition, review the license agreement and select Agree and Activate Free License.
