8.12 AI Agent IM Channels

AI Agent supports interaction through instant messaging tools. After configuring message channels, you can converse with AI Agent on Feishu (Lark), Telegram, or WeChat without always needing to open the IDMP Web interface. The system administrator configures the channels, then each user binds their IM account to their IDMP user account to establish a secure conversation channel.

8.12.1 Channel Overview

Message channels involve three layers:

1. Admin configures channels: Configure Bot credentials for each IM platform in the Admin Console.
2. User binding: Each user binds their IM account to their IDMP user account.
3. Daily use: Once bound, you can talk to AI Agent directly in IM.

IDMP currently supports four message channels:

Channel	Bot Configuration	User Binding Method	Notes
Feishu (Lark)	App ID + App Secret	Scan QR code, send any message to get 6-digit binding code	Commonly used by enterprises; requires creating a Feishu app
Telegram	Bot Token (± Proxy)	Open Bot link, send command to get 6-digit binding code	Commonly used by individuals; requires creating a Bot via @BotFather
WeChat	System toggle, no Bot credentials needed	Scan QR code + phone confirmation	Bind personal WeChat; user scans code to complete automatically
DingTalk	Client ID + Client Secret + Bot Name	Search the bot in DingTalk, send a message to get 6-digit binding code	Commonly used by enterprises; requires creating a Stream-mode bot on the DingTalk Open Platform

8.12.2 Configuring Message Channels (Admin)

Go to Admin Console → AI Management → Channel Management to manage message channel Bot configurations.

Channel List

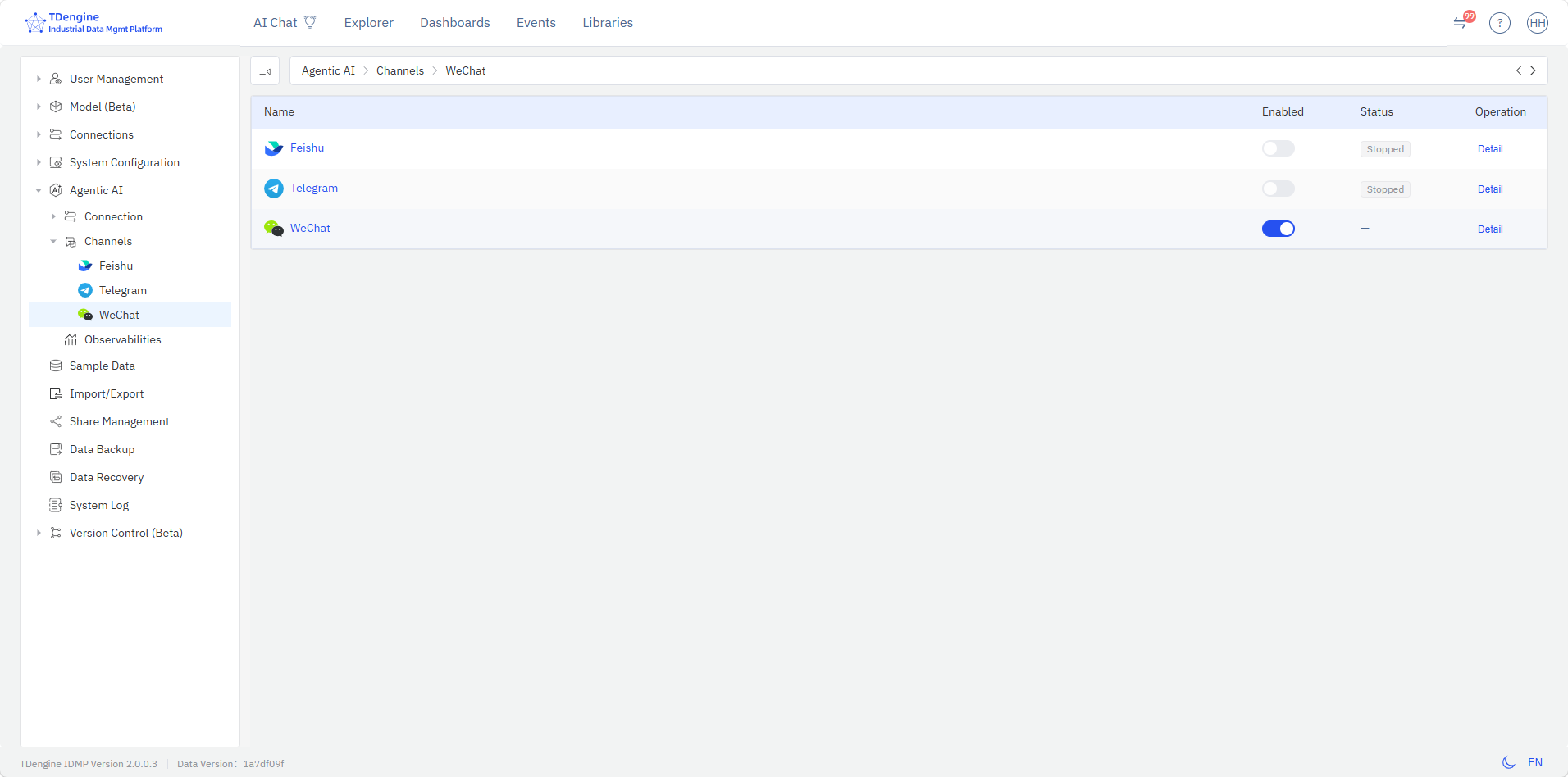

The channel list displays all four channels in a table, each showing the channel name, enable toggle, running status, and a "Details" action:

Column	Description
Name	Channel icon + name (Feishu / Telegram / WeChat / DingTalk)
Enabled	Toggle switch. Feishu/Telegram/DingTalk cannot be enabled without saved Bot configuration; WeChat controls the system-level toggle directly
Status	Feishu/Telegram/DingTalk show Running / Stopped; WeChat does not display a status
Actions	"Details" button to enter the channel's detailed configuration page

Feishu Channel Configuration

Click the "Details" button on the Feishu row in the channel list to enter the Feishu channel configuration page.

Initial setup:

1. Visit the Feishu Open Platform (https://open.feishu.cn/page/launcher) and create an enterprise self-built app.
2. Obtain App ID and App Secret from the app credentials.
3. Enter the App ID and App Secret in the IDMP Feishu configuration page, then click Save.
4. Enable the channel toggle after saving.
5. Click Start to start message listening.

Modifying configuration: Click the edit icon. Leave App Secret blank to keep the original value unchanged.

Viewing bound users: The lower half of the configuration page shows the list of bound users, including email, name, and binding time. Administrators can unbind users directly.

Telegram Channel Configuration

Click the "Details" button on the Telegram row in the channel list to enter the Telegram channel configuration page.

Initial setup:

1. Search for @BotFather in Telegram, follow the instructions to create a new Bot and obtain the Bot Token.
2. Enter the Token in the IDMP Telegram configuration page.
3. Optional: If your network requires a proxy, fill in the Proxy field (e.g., http://proxy.example.com:8080).
4. Click Save.
5. Enable the channel toggle after saving.
6. Click Start to start message listening.

Modifying configuration: Click the edit icon. Leave Token blank to keep the original value unchanged. You can also delete the Telegram configuration at any time.

Viewing bound users: The lower half of the configuration page shows the list of bound users.

DingTalk Channel Configuration

Click the "Details" button on the DingTalk row in the channel list to enter the DingTalk channel configuration page.

Initial setup (create an app on the DingTalk Open Platform):

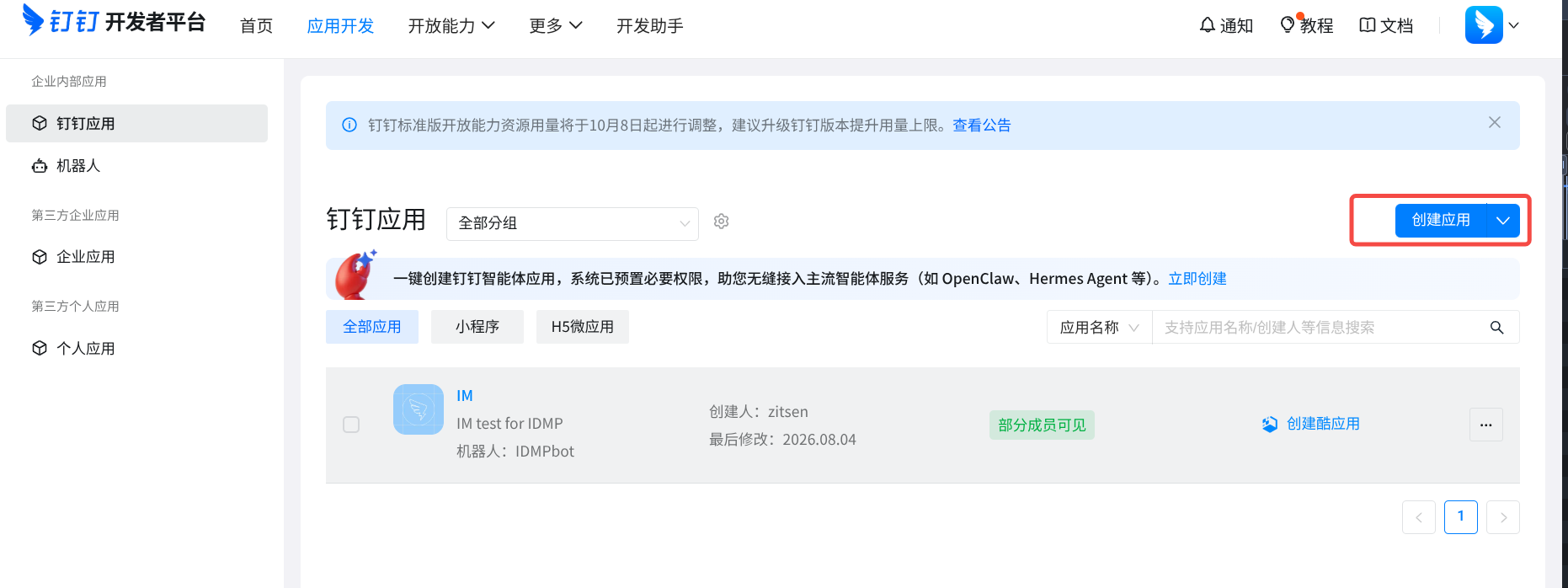

1. Visit the DingTalk Open Platform (https://open.dingtalk.com), sign in, go to the Developer Console, click Create App, and select Enterprise Internal App.

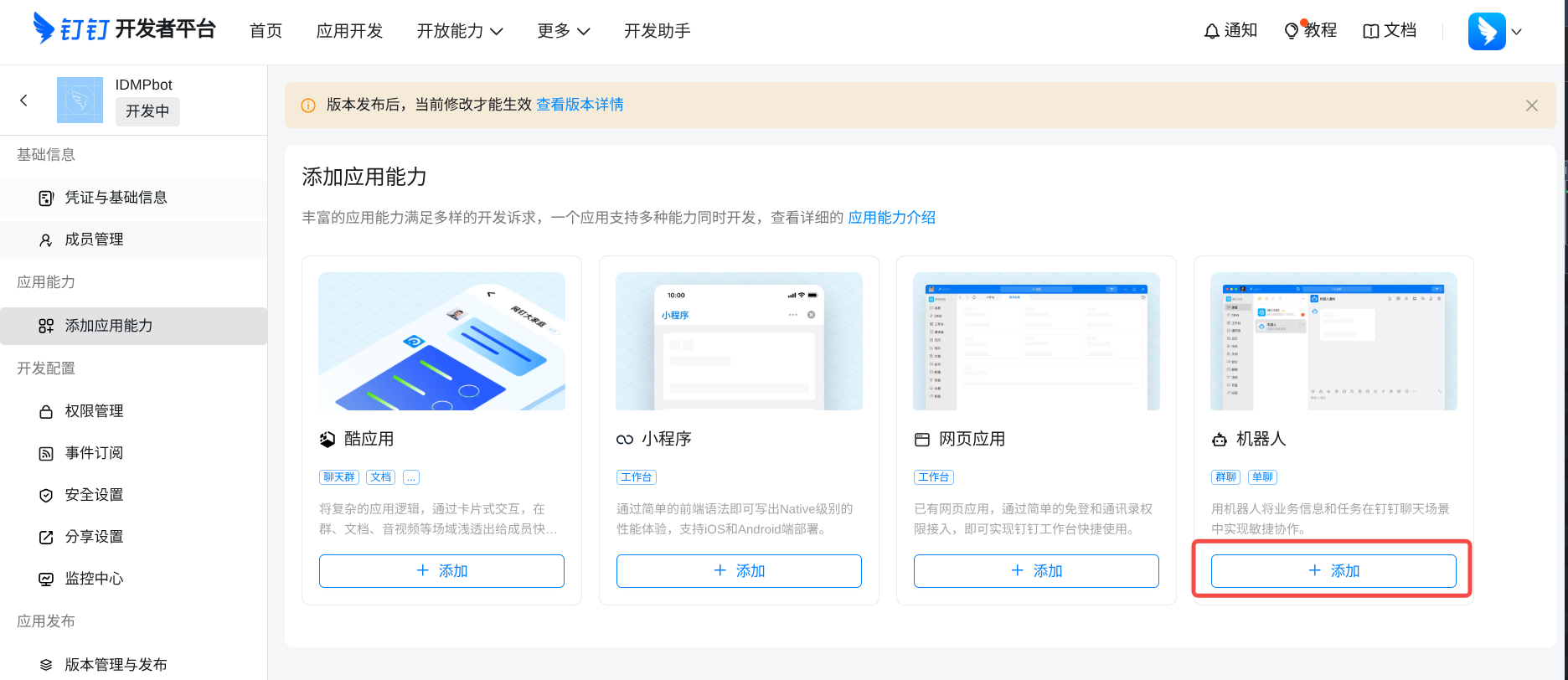

2. In the app development page, go to App Capabilities → Bot, click Add Bot, and select Stream Mode as the message receiving mode.

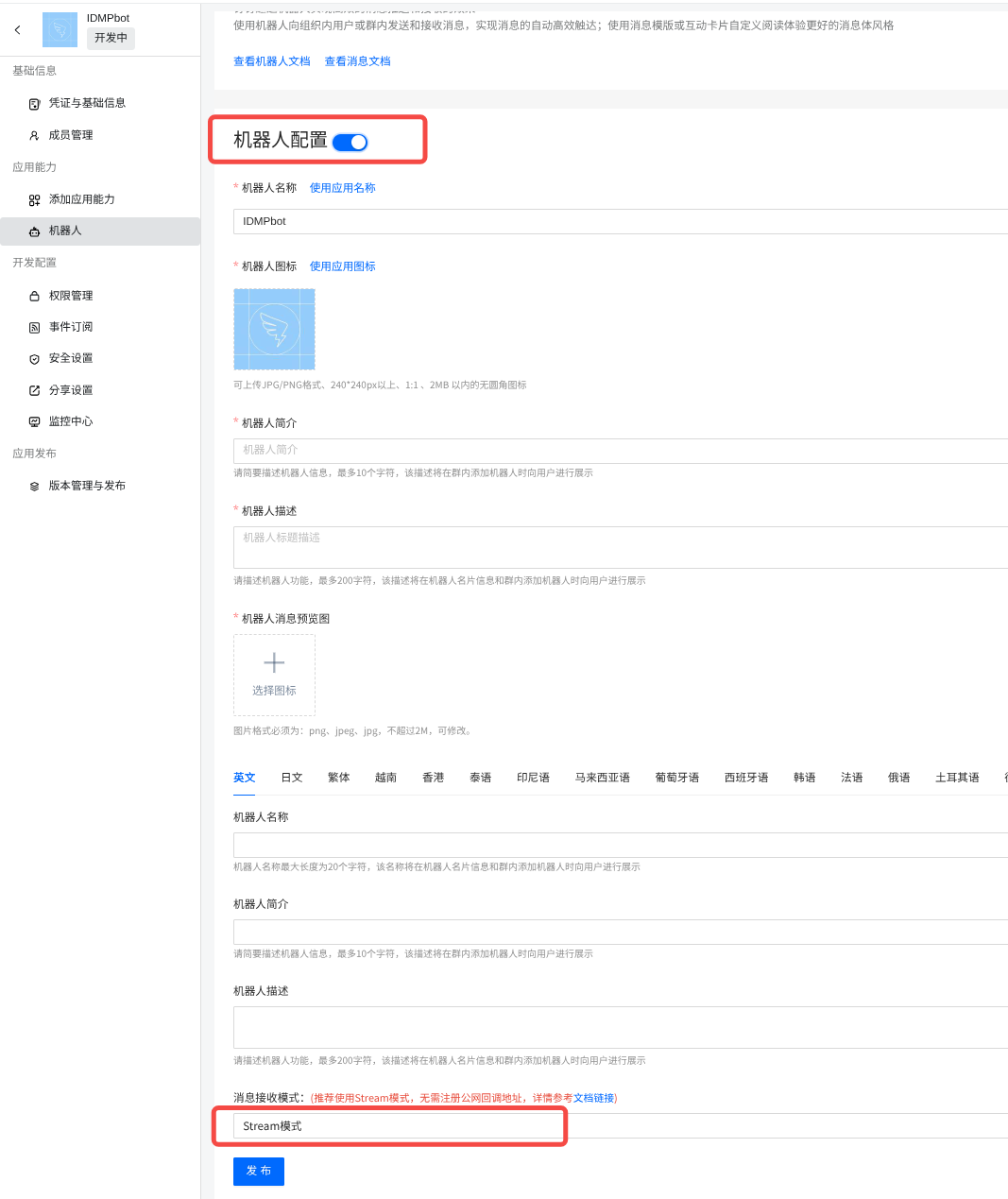

3. Fill in the bot name and other details in the bot configuration. After saving, the app has Stream-mode bot capability.



4. In Permissions Management, apply for the following permissions:

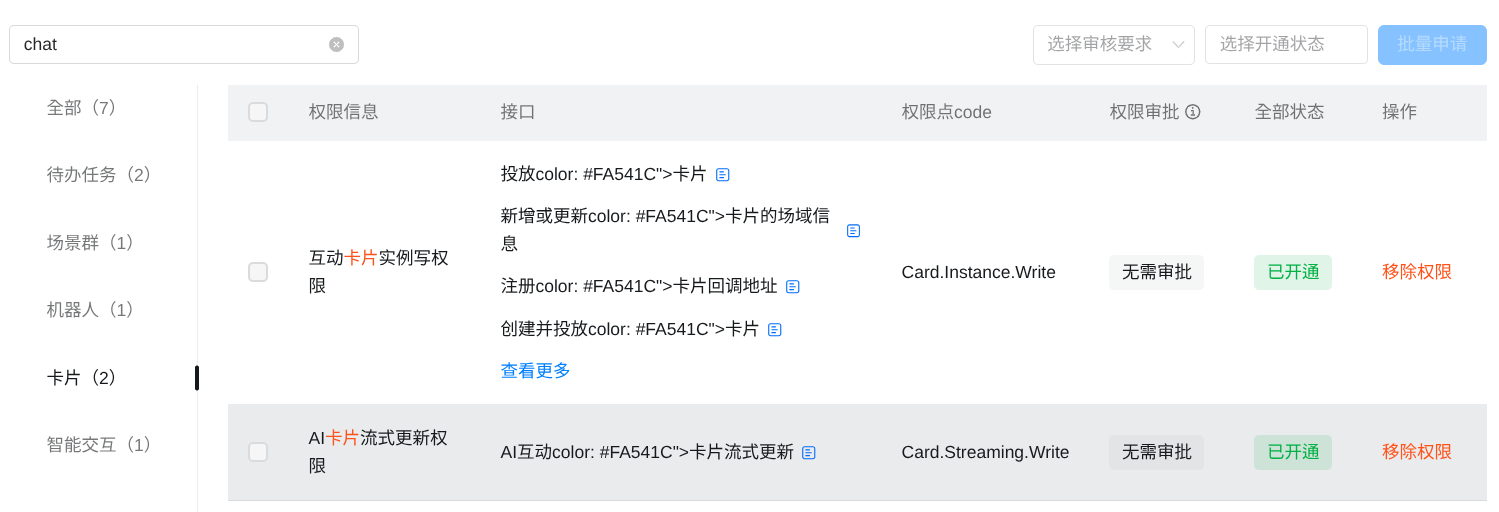

   • Interactive Card (qyapi_im_card) — shows the "thinking…" card while processing messages;

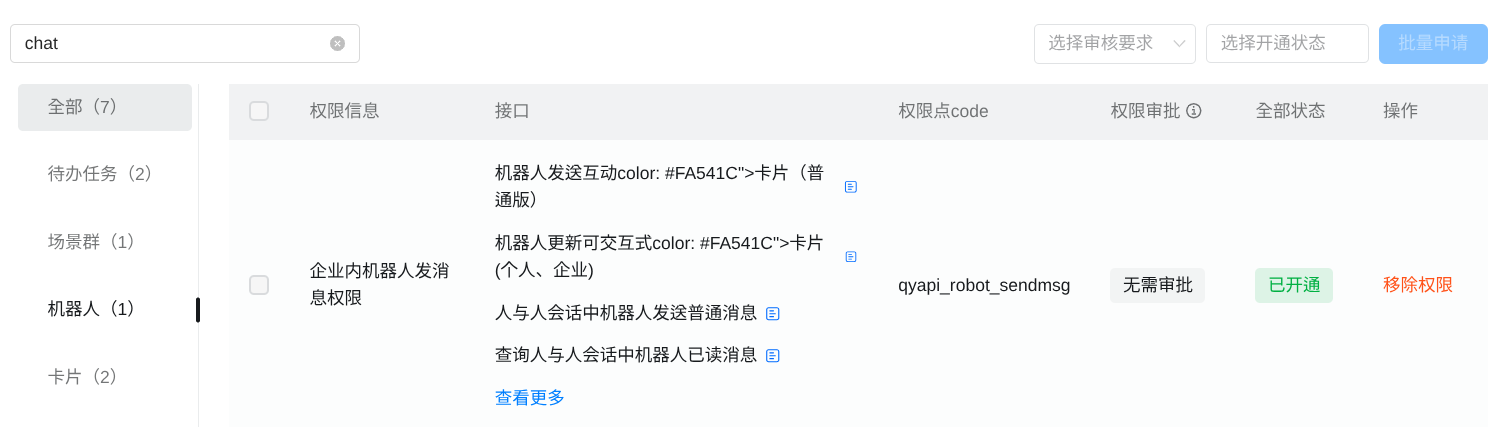

   • Message Send (qyapi_robot_sendmsg) — required to reply to users and send proactive pushes.

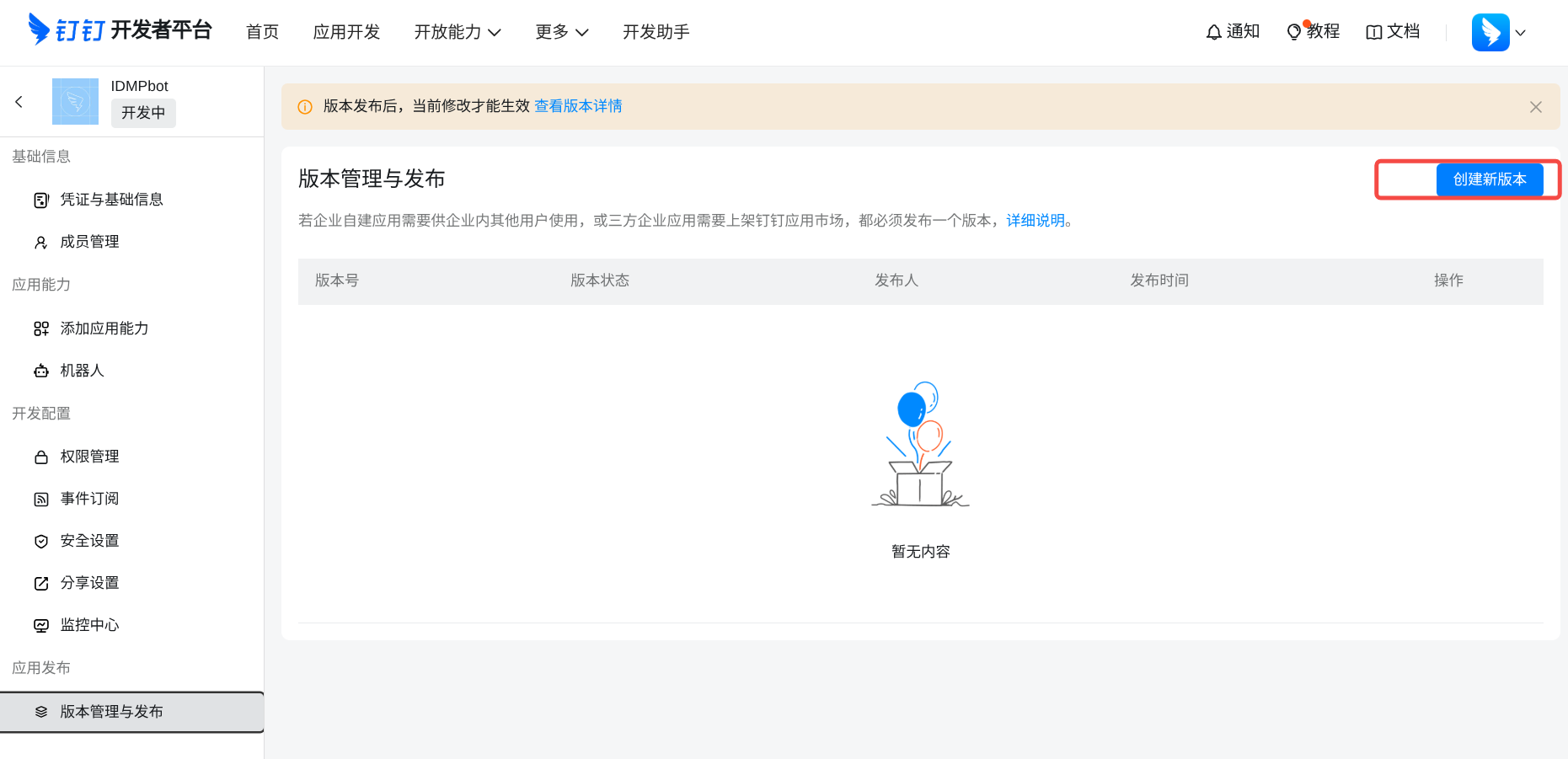

5. In Version Management & Release, create a version and release the app so it takes effect within your organization.

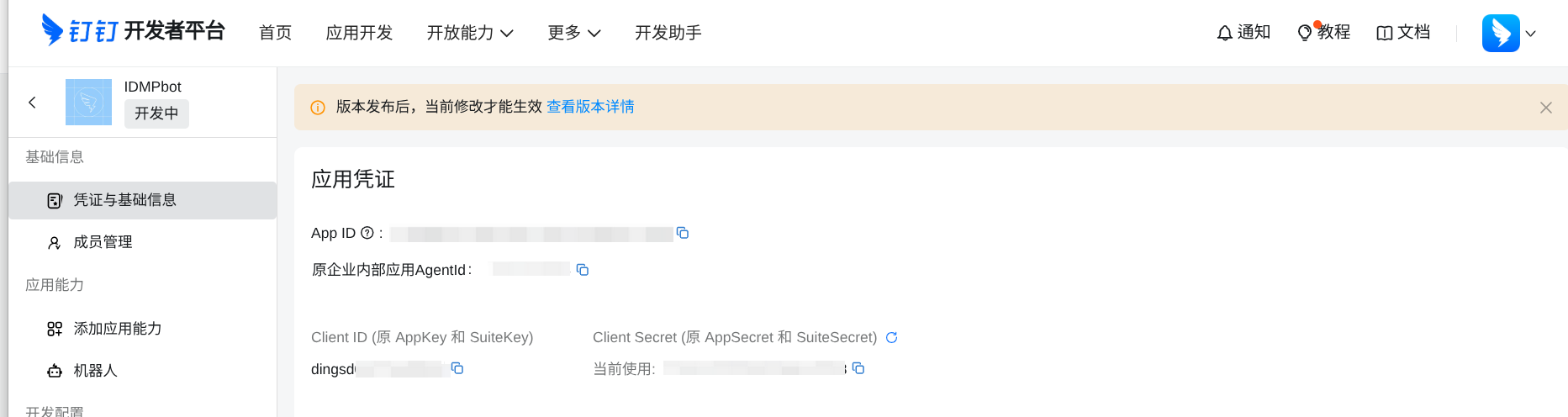

6. In Credentials & Basic Info, obtain the Client ID (AppKey) and Client Secret (AppSecret).



Configure in IDMP:

1. Enter the Client ID, Client Secret, and Bot Name (matching the DingTalk console; used in the binding hint) on the IDMP DingTalk configuration page, then click Save.
2. Enable the channel toggle after saving.
3. Click Start to start message listening.

Modifying configuration: Click the edit icon. Leave Client Secret blank to keep the original value unchanged.

Viewing bound users: The lower half of the configuration page shows the list of bound users.

WeChat Channel Configuration

The WeChat channel does not require Bot credentials. Click the "Details" button on the WeChat row in the channel list to enter the WeChat configuration page, which only displays the bound user list.

Use the Enabled toggle on the channel list page to control the global availability of this channel.

8.12.3 Users Binding IM Accounts

Viewing Channel Status

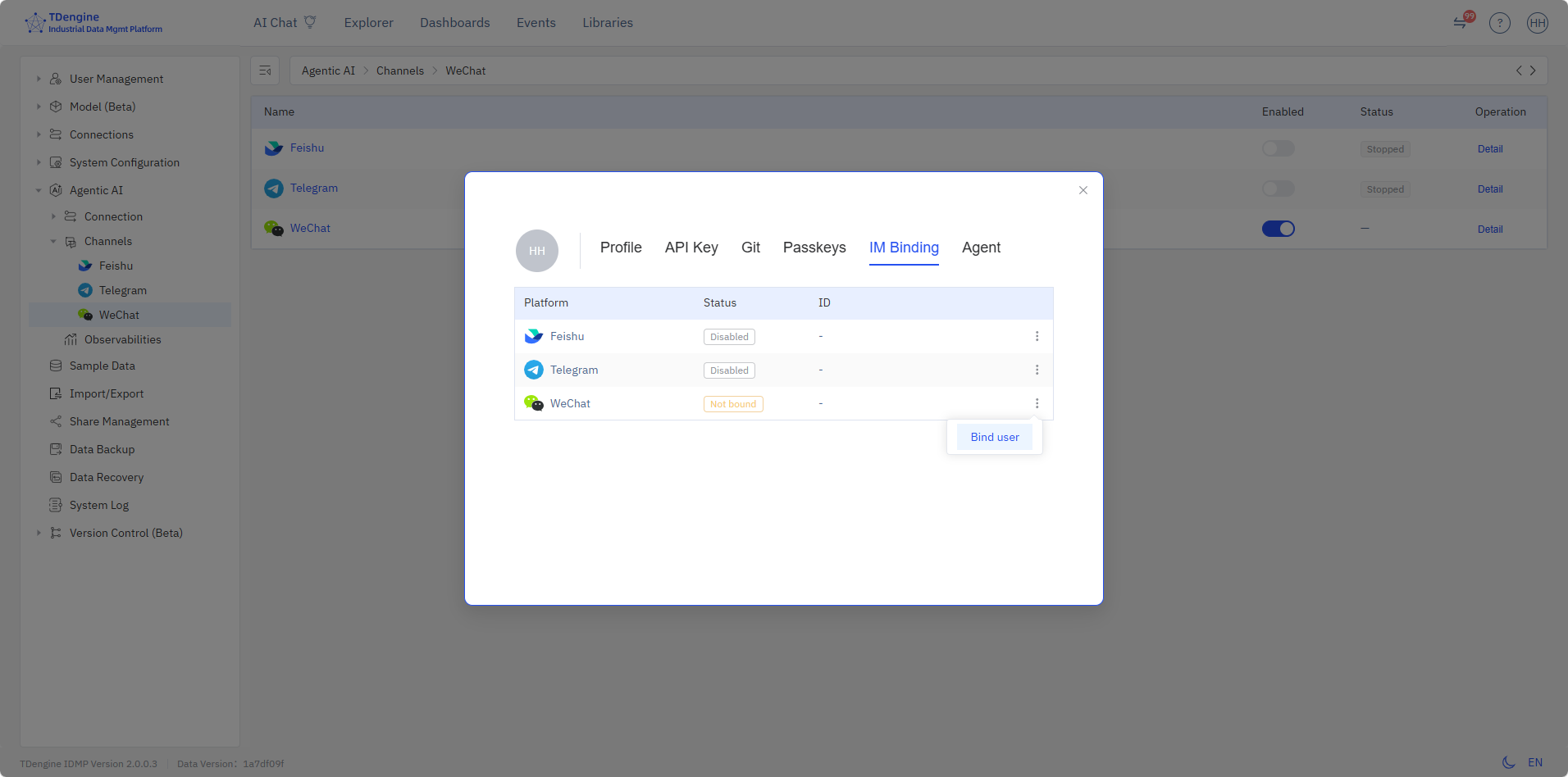

In the IM Binding section of your personal settings page, the status cards for all four channels are always displayed, regardless of whether you have bound them:

[Feishu icon]  Feishu    Status: Listening  |  ID: ou_xxxx  [Unbind]
[Telegram]     Telegram  Status: Listening stopped  |  [Start Listening]
[WeChat icon]  WeChat    Status: Not bound  |  [Bind User]
[DingTalk icon] DingTalk Status: Listening  |  [Bind User]

Status descriptions:

Status	Description
Not Enabled	The administrator has not configured this channel
Listening Stopped	The channel is configured but Bot listening has not started
Listening	The channel is configured and listening is running normally
Not Bound	Your IM account is not bound to IDMP
Bound	Your IM account is bound and can receive AI Agent messages

Binding Feishu

1. Make sure the administrator has configured the Feishu channel and listening is running.
2. In the IM Binding section, when the Feishu row shows "Listening," click Bind User.
3. A Feishu QR code pops up. Scan it with the Feishu client.
4. After scanning, open the Bot conversation and send any message to get a 6-digit binding code.
5. Enter the 6-digit binding code in the dialog and click Bind.
6. After successful binding, the page refreshes automatically and the status changes to "Bound."

Binding Telegram

1. Make sure the administrator has configured the Telegram channel and listening is running.
2. In the IM Binding section, when the Telegram row shows "Listening," click Bind User.
3. A new window opens with the Telegram Bot link.
4. Send a message to the Telegram Bot to get a 6-digit binding code.
5. Return to the IDMP dialog, enter the 6-digit code, and click Bind.

Binding WeChat

1. Make sure the administrator has enabled "Personal WeChat Binding" in system settings.
2. In the IM Binding section, click Bind User on the WeChat row.
3. A QR code appears. Scan it with WeChat.
4. Confirm login on your phone.
5. The system automatically polls the QR code status and completes binding upon confirmation.
6. After successful binding, the popup closes automatically and the status updates to "Bound."
7. In WeChat on your phone, tap the newly added WeChat Clawbot to customize settings such as nickname, pin to top, or change profile picture.

Binding DingTalk

1. Make sure the administrator has configured the DingTalk channel and listening is running.
2. In the IM Binding section, when the DingTalk row shows "Listening," click Bind User.
3. The dialog tells you to search for the bot name configured by the administrator (e.g., IDMPbot) in DingTalk, or add the bot to a group chat to start chatting.
4. Send any message to the bot in DingTalk. The bot replies with a 6-digit binding code.
5. Return to the IDMP dialog, enter the 6-digit code, and click Bind.
6. After successful binding, the status updates to "Bound."

Unbinding

For a bound channel, click the Unbind button. Click Confirm in the confirmation dialog, and the system unbinds your IM account from your IDMP account.

8.12.4 Data and Security

• Binding information is stored in the channel_user_binding table, including the IM platform's user open ID, binding time, and binding code.
• Binding codes are 6-digit temporary codes with a 5-minute validity period. Expired codes require re-requesting.
• AI Agent cache: When unbinding, the system automatically clears the cached API Key to prevent old credentials from being reused.
• Bot configuration Secrets and Tokens are masked (********) when viewed in the Admin Console. Leaving them blank during editing preserves the original values.

8.12.5 Frequently Asked Questions

Q: Can't receive messages after creating a Feishu Bot?

A: After publishing a Feishu app, it takes a few minutes to take effect. Make sure event subscriptions and permissions are correctly configured on the Feishu Open Platform, and that the Bot is enabled. Then check that the App ID and App Secret are correct on the IDMP Feishu configuration page, and click Start to start listening.

Q: How do I create a Telegram Bot?

A: Search for @BotFather in Telegram, send the /newbot command, and follow the instructions to set the Bot name and username. After successful creation, @BotFather will return a Bot Token. Enter it in the IDMP Telegram channel configuration page.

Q: What if my binding code expires?

A: Binding codes are valid for 5 minutes. After expiry, send a message to the Bot again to get a new 6-digit code, then enter the new code in the dialog.

Q: The DingTalk bot cannot reply or send proactive messages?

A: On the DingTalk Open Platform, make sure the app has applied for and released the following permissions: Interactive Card (qyapi_im_card) and Message Send (qyapi_robot_sendmsg). Permission changes take effect only after publishing a new version. Also confirm the Client ID and Client Secret on the IDMP DingTalk configuration page are correct.

Q: The bot name shown in the DingTalk binding hint is wrong?

A: The binding hint uses the bot name filled in by the administrator on the IDMP DingTalk configuration page. Make sure it matches the bot name in the DingTalk console (e.g., IDMPbot) so users can find the bot in DingTalk.

Q: Can AI Agent still contact me via IM after unbinding?

A: No. After unbinding, AI Agent will no longer send messages to your IM account. To restore, simply re-bind.
